Magnetic Card Reader/Writer

Home - Products > Magnetic Card Reader/Writer

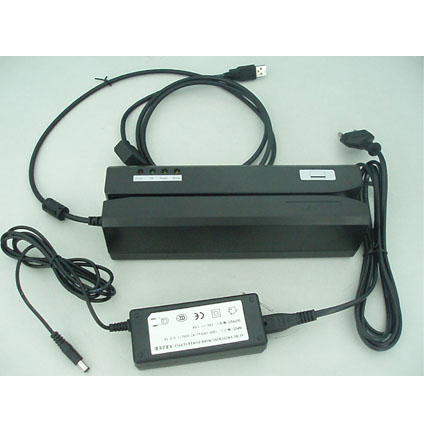

Product Name:Magnetic Card Reader/WriterProduct Model:MSR 606

MSR606 Manual Swipe Magnetic Card Reader/Writer is designed to offer a card reading/writing solution for ISO 7811/1~6 formats.  It reads and writes up to 3 tracks of data, e.g. decoding/encoding and verifying up to 3 tracks of data simultaneously.  Also, MSR606 Reader/Writer provides a standard USB interface to communicate with host system or other terminal computers.

MSR606 Key features of Manual Swipe Magnetic Card Reader/Writer are:

·     Reading/Writing magnetic stripe card complied with ISO 7811/1~6 formats

·   Manual Swipe to read and/or write card with RS-232 output

·   Read/Write High and Low Coercive force of magnetic stripe (300~4000Oe)

·   5~35ips operational swipe speed of writing data

·   5~55ips operational swipe speed of reading data

·   +24VDC+/-10%, 2.0A Max., external power adapter attached

·   Writing and then verifying data on single, dual, or triple track in one   swipe

·   Programming software for various read/write performance

·   High/Low Coercivity encoding circuitry selectable on screen

·   Programmable leading bit, raw data, DMV/AAMVA, and user defined format

·   Good size with dimensions of 210(L) x 60(W) x 65(H) mm

·   CE, FCC, UL, cUL certified

Manual Swipe Magnetic Card Reader/Writer MSR606 Series is ideal for credit card verification and various card related applications. Customer designed products are available for optional projects or joint ventures.
